Description

3.5″ 640×480 Retro Pixel HD IPS LCD Kit For For SEGA Game Gear For SEGA GG Console And 720P HDMI

Support Sega single chip motherboard and dual chip motherboard:
–Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
–Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03
NOTE1: Doesn’t supported: Majesco Game Gear VA4 / VA5
NOTE2: The motherboard with the “MADE IN TAIWAN” logo on the motherboard of the game console does not support.

​ ​
Description:

1. 640×480 display resolution. HD IPS LCD.
2. Same display size as the original screen.
3. Wide View angle up to 178 degree.
4. Built-in OSD Menu!

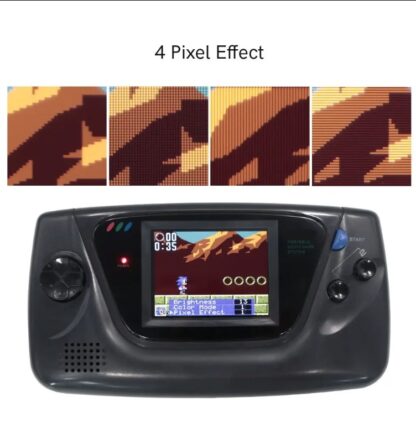

5. Retro pixel Effects: Normal, Retro pixel, Scanline 1 and Scanline 2.
6. High brightness, 15 brightness levels.
7. 8 colour modes.
8. Built in 3 LCD Aspect Ratio.
9. Image position adjustable. No worry to aligning the LCD screen.
10. 720P HDMI-Compatible Output. Support to play games on TV Set.
11. Built in 3 TV Aspect Ratio.
12. FPC connect cable design. Simpler wiring and easier installation.

OSD Menu Operation:

-Press the START+1+2 buttons for 1 second to activate the OSD Menu.
-Press the ‘START’ button to select the adjustment item when OSD Menu activated.
-Press the ‘1’ or ‘2’ button to adjust the item when OSD Menu activated.

Package includes :
​
1xBacklight LCD.
1x HDMI version PCB.
1x FPC connect cables.
1xDouble-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
1x HDMI adapter cable,

Video installation tutorial
